LY-500

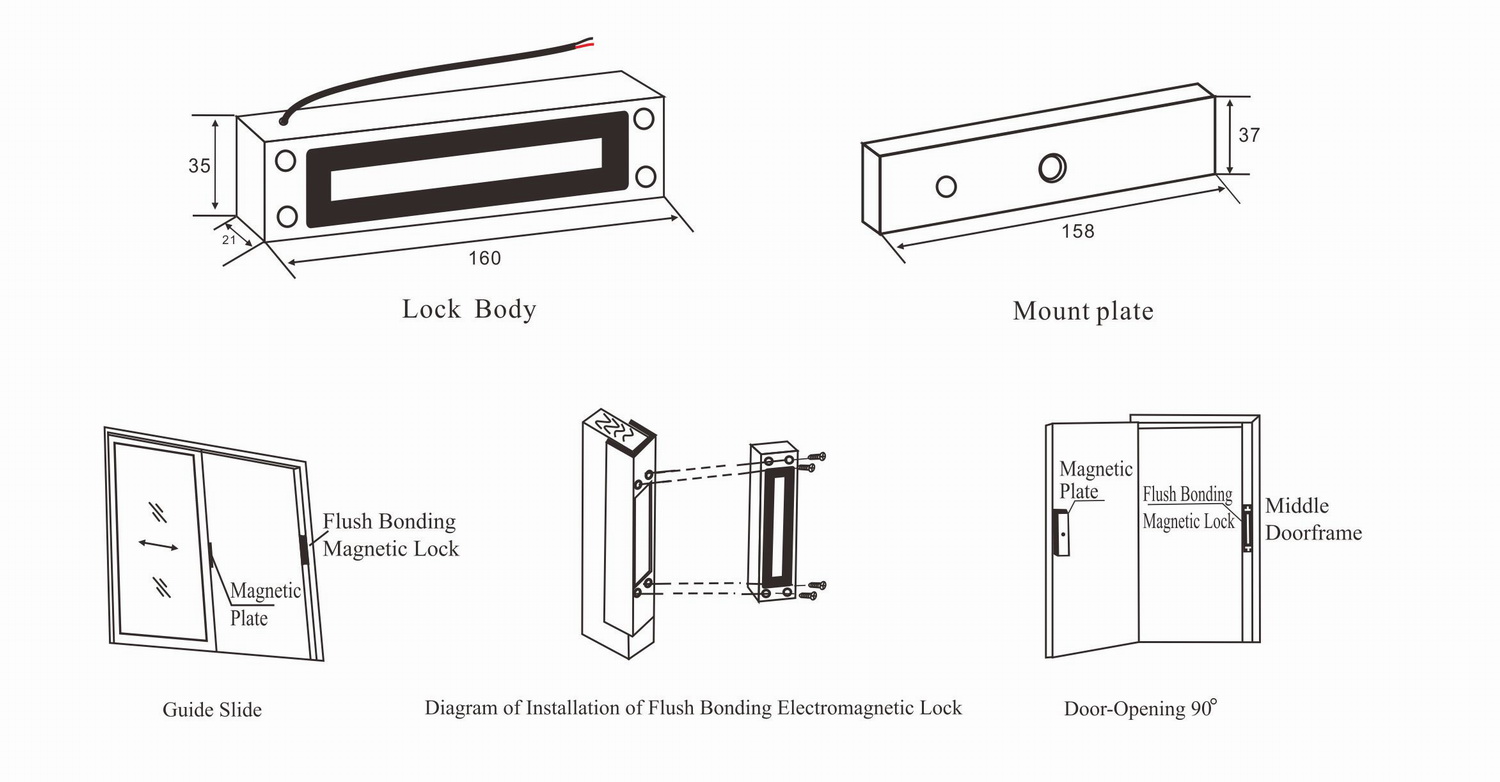

The electromagnetic lock is a new type lock which designed according to installation environment. The lock can be installed by two ways, hang on the door frame; mount L-bracket on the door frame. The chrome plating on the surface of the lock body and armature plate; all spare parts are sealed in resin, which make lock more artistic and durable. This lock is suitable for wooden door, glass door, metal door and fire-proof door, etc.

Technical Parameter

Lock Size:160X40X26mm

Holding Force:230kg

Operating Voltage:12VDC

Operating Current:350mA

Type:Fail safe

Suitable for: wooden doors, glass doors, metal doors, fireproof doors
