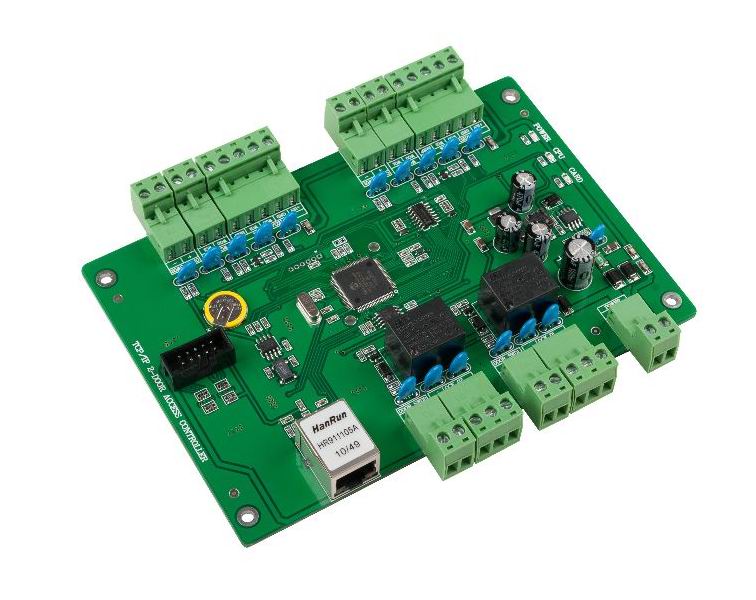

LY-A324T TCP/IP Four Doors Access Controller |
 |
LY-A324T TCP/IP access controller can manage two doors, supports 26,000 users data, 100,000 event logs, provides one 7A lock relay output, two door sensor input port, two exit button input port, four WG26/34 card reader input ports, one TCP/IP communication port.Support operating voltage DC12V, working current<350ma.< span="">
System functions: Conventional Function：Offline Operation、Reading Card Unlocking、Passwords Unlocking 、Reading Card+Passwords Access、Period Reading Card+Passwords Unlocking、Manual Input Card Number + Passwords Unlocking、First Card Unlocking、Normal Card Unlocking、Remote Unlocking、Remote Locking、 Unlocking at definite time、Priod Normally Open、 Real Time Supervision、Abnormally Supervision、E-map、Duress Alarm、Fire Alarm Linkage、Robber Alarm、Illegal Break In Alarm、Illegal Card Alarm、Missing card Management、Black list Card Alarm、Door open time out Alarm/Prompt、Anti-passback And Anti-tail、Bulk Data Uploading、Small Group Data Uploading、Dual Door Interlocking、Multi-Door Interlocking、Multi-Card Unlocking、Keypad Programming 、Emergency Locking、Time Attendence、64 Groups Time zone、Holiday time zone and etc. Professional Function：Card data recover、Logs repair、anti detection lock、Card Reading and validation 、Full cards unlocking、full cards unlocking+auto register、time self-adjust、Unlocking Based On Internal And External Validation、indoor population checking、telephone inform once trigger alrm、 operation time dispaly New Function：except the function above，we also add LY-A300series with some new functions that other suppliers do not support：Abnormal detection of the card reader circuit and voice prompts、system temperature detection、Power input stability dection、Trial period、online patrol management 、voice prompts if the card close to expiration date 、daily intelligent self correction of time error、Exit Swith available during valid time zone 、remote phone taking when swiping card、Anti theft alarm host function、time interval setting of twice swiping card 、Door magnetic alarm time management、encrypted communication data、swiping card times setting、capacity expension、WEIGEND keyboard issue card and etc.
Product Parameters |
