biometric time attendance terminal is a flexible and reliable design to meet the market requirement for a secure and cost-effective biometric time attendance solution. It allows registering maximal 3000 fingerprints, 3000 passwords, 3000 RF ID cards (optional) and saving maximal 80,000 records.

Fingerprint Template Capacity:3000

Password (PIN) Capacity:3000

RF ID Card Capacity:3000

Record Capacity:80,000

Verification Mode :1:1 or 1:N

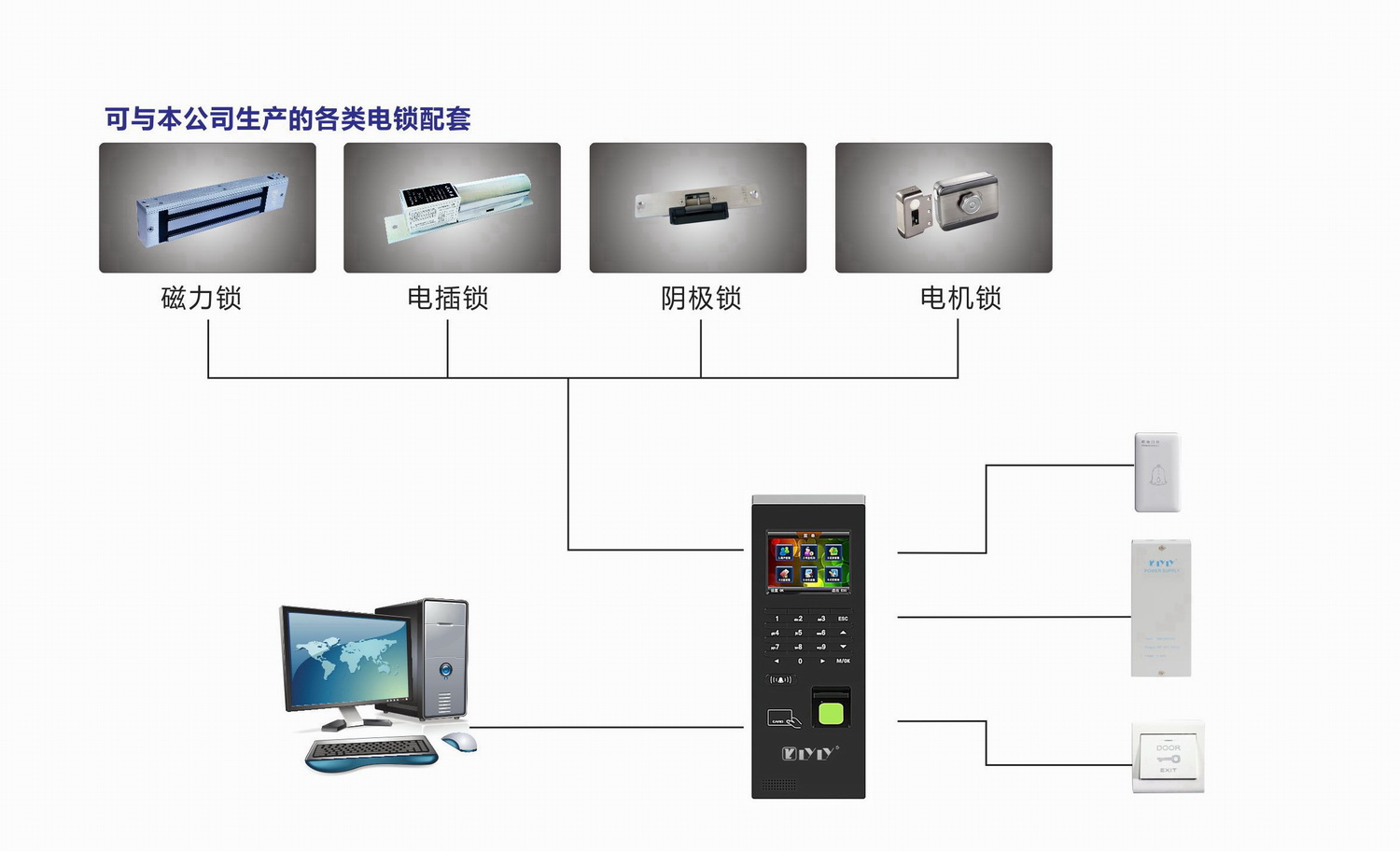

Communication:TCP/IP, RS485 & U-disk Via U-disk it can send fingerprint data to                                  other Devices

Recognition Mode:Fingerprint or password or RF ID Card (optional)

Keyboard and Display:2.8 inch color screen and Touch button

Power Supply:12VDC;

                        standby current: 0.25A;

                        operating current: 0.3A

                        when not running electric strike lock

Identification speed:＜=0.7 second

FRR (False Rejection Ratio):＜=0.01%

FAR (False Acceptance Ratio):＜=0.0001%

Operating Environment :Temperature: 0°C – 40°C

                                          Humidity: 20% – 80%

Menu Language Support:In both Chinese and English and other languages PMingLiU;mso-font-kerning:1px;mso-ansi-language:EN-US;mso-fareast-language: AR-SA;mso-bidi-language:AR-SA'>Language Support

Dimension:219(L) x 82(W) x 27(D) mm
